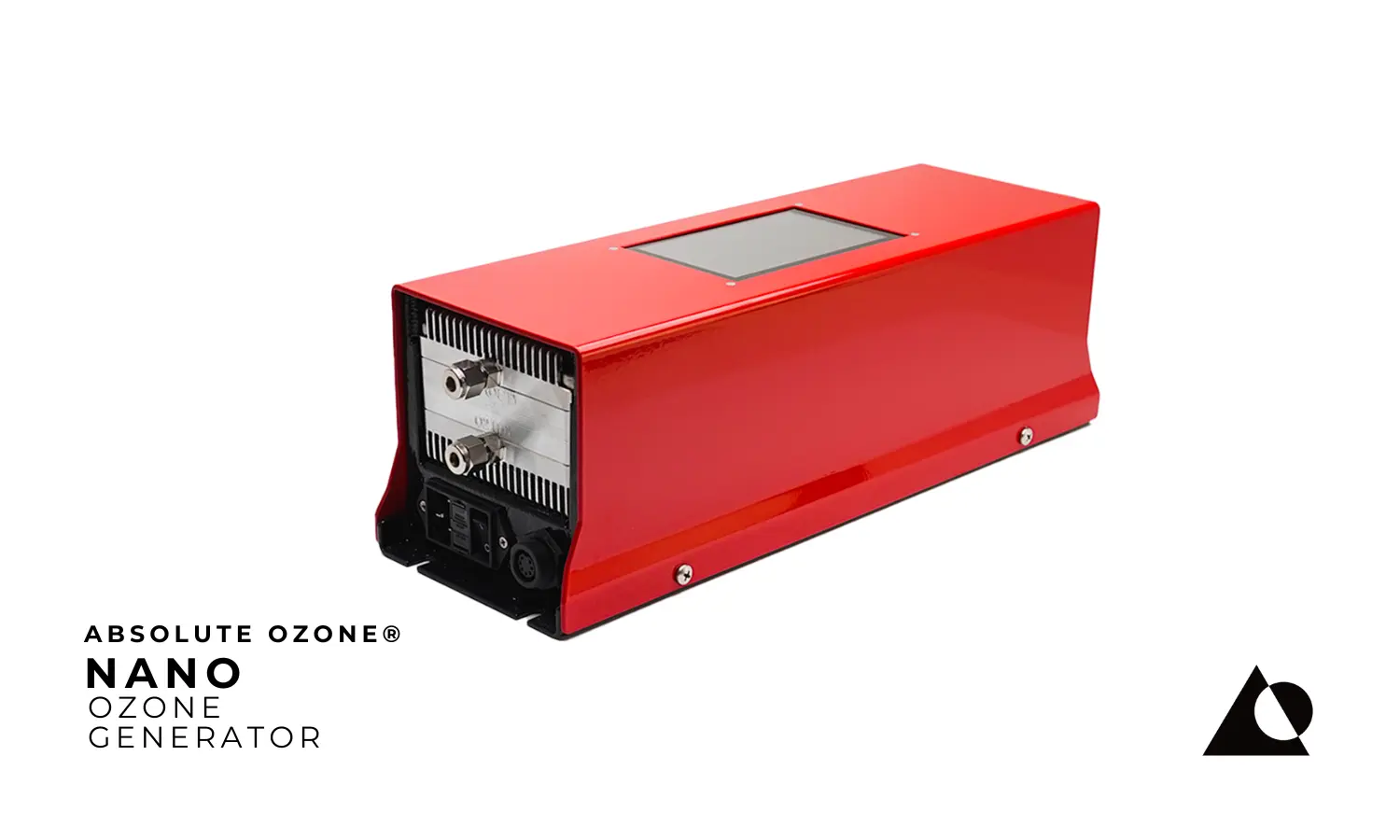

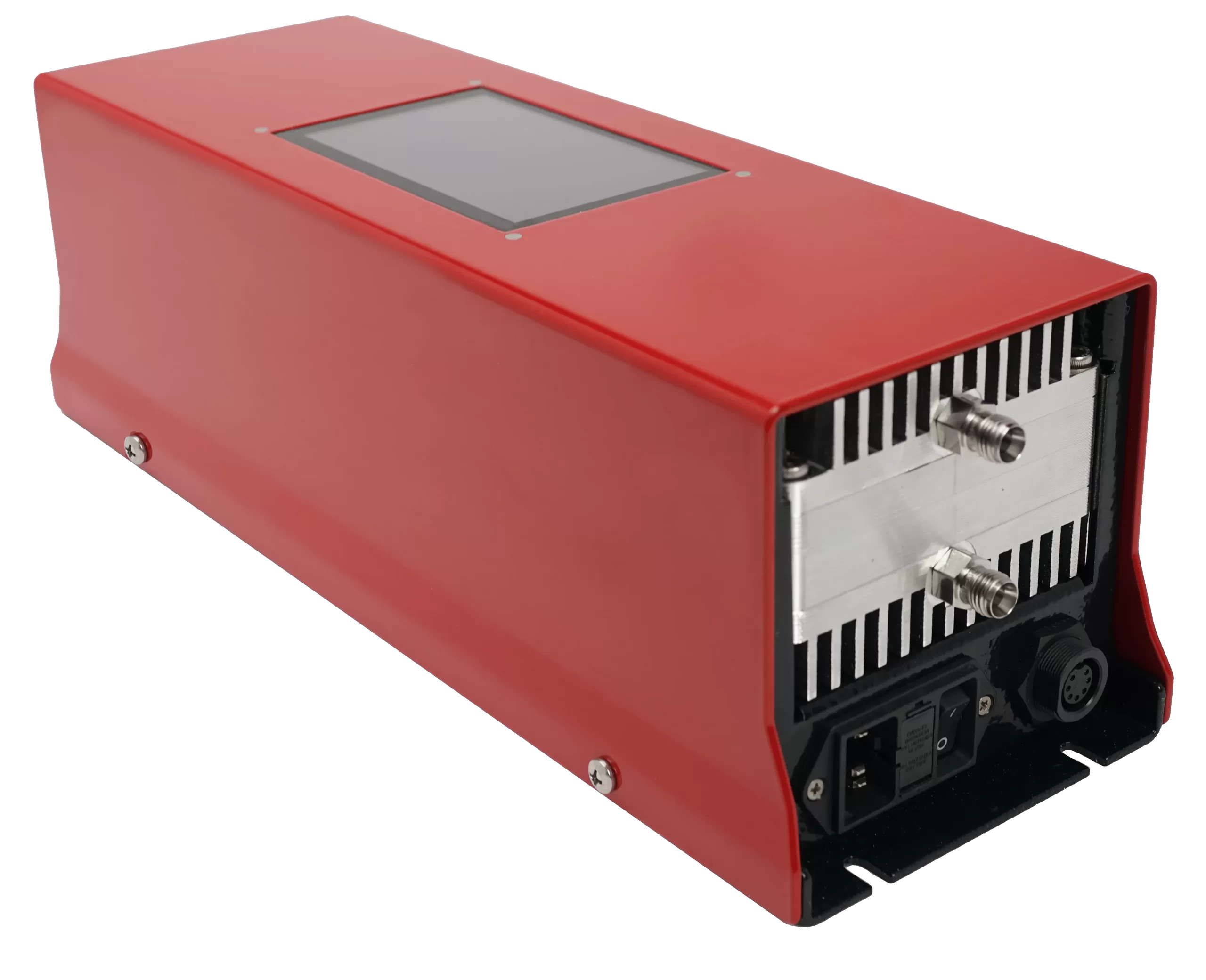

NANO 15
Many Ozone Generators are producing Ozone at a 3% concentration. Besides, hardly achieving 30% of total ozone dissolved and wasting incredibly large amounts of Oxygen. There is a much better way to dissolve Ozone in water.
NANO 15 can dissolve up to 70% of total Ozone produced while using incredibly low amounts of Oxygen (4 SLPM)
That’s more than Double the Ozone dissolved, Imagine replacing two expensive inefficient clunky Ozone Generators with one Sleek, Compact NANO Ozone Generator.
View Tech Specs
Now taking orders, Get yours today!
Technical Specifications
Product Characteristics
- Ozone Production: 15 g/h
- Standard Working Pressure: 20 PSIG
- Concentration (% by weight O3): 5 – 10%
- Gas flow rate: 0.1 – 4 SLPM
Control Power Requirements
- 120 V ~ ±10%, 50/60 Hz, Single Phase, 2.5 A
- 230 V ~ ±10%, 50/60 Hz, Single Phase, 1.25 A
- Maximum Power Consumption: 200 W

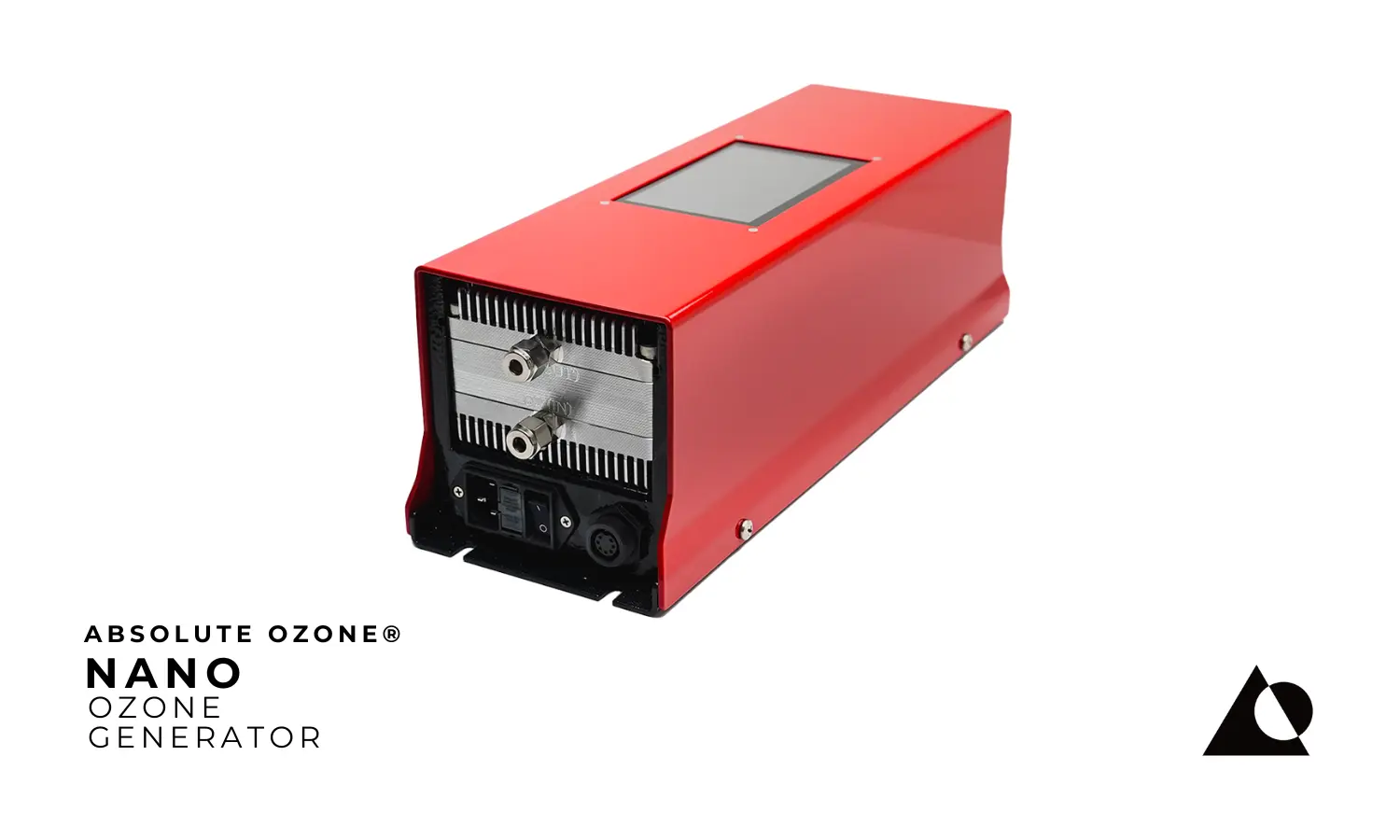

Physical Connections
- Oxygen Inlet: 0.25-inch Swagelok
- Ozone Gas Piping Outlet: 0.25-inch SS Swagelok
Materials and Construction
- Enclosure: Brushed Stainless Steel/Aluminum
- The high-precision machined ozone generator cell is tested at up to 120 PSIG for leaks.
- O3/O2 Gas Tubing: PTFE/304 Stainless Steel
Dimensions and Weight
- Enclosure Dimensions: 5 inch height x 5 1/4 inch width x 15.5 inch depth
- Generator Weight: 4.5 kg (10 lbs)
CSA – available as an option
Reliability, Performance, and Quality Backed By 5 Years Warranty!
BEST PERFORMANCE
Unparalleled for Air-cooler
HIGH-QUALITY COMPONENTS
5-years Warranty
COMPACT DESIGN
Easy to integrate
SMARTH
Diagnostic & Control System
Performance
Absolute Ozone® unbeatable NANO ozone generator dissolves more ozone than any other, delivering superior disinfection rates.
Absolute Ozone® generators are the ultimate breakthrough in ozone technology. Their microfluidic platform design ensures precise and reliable delivery ozone for a diverse range of applications.
The performance is unequaled in the industry, with the capability of reliably producing high concentration ozone up to 10% by weight guaranteed.

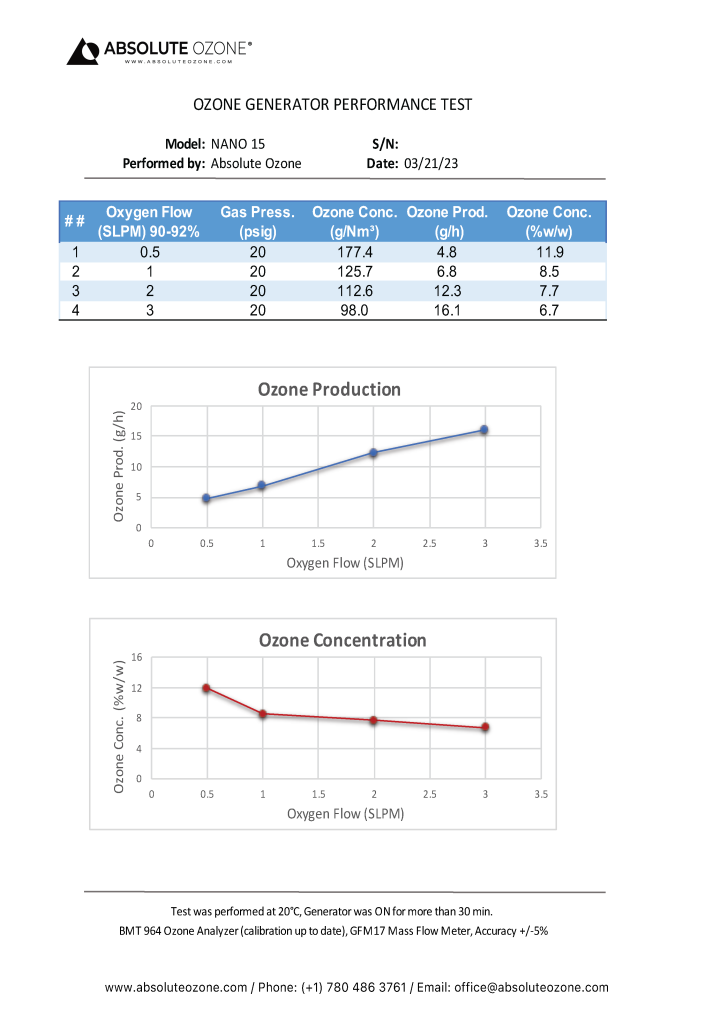

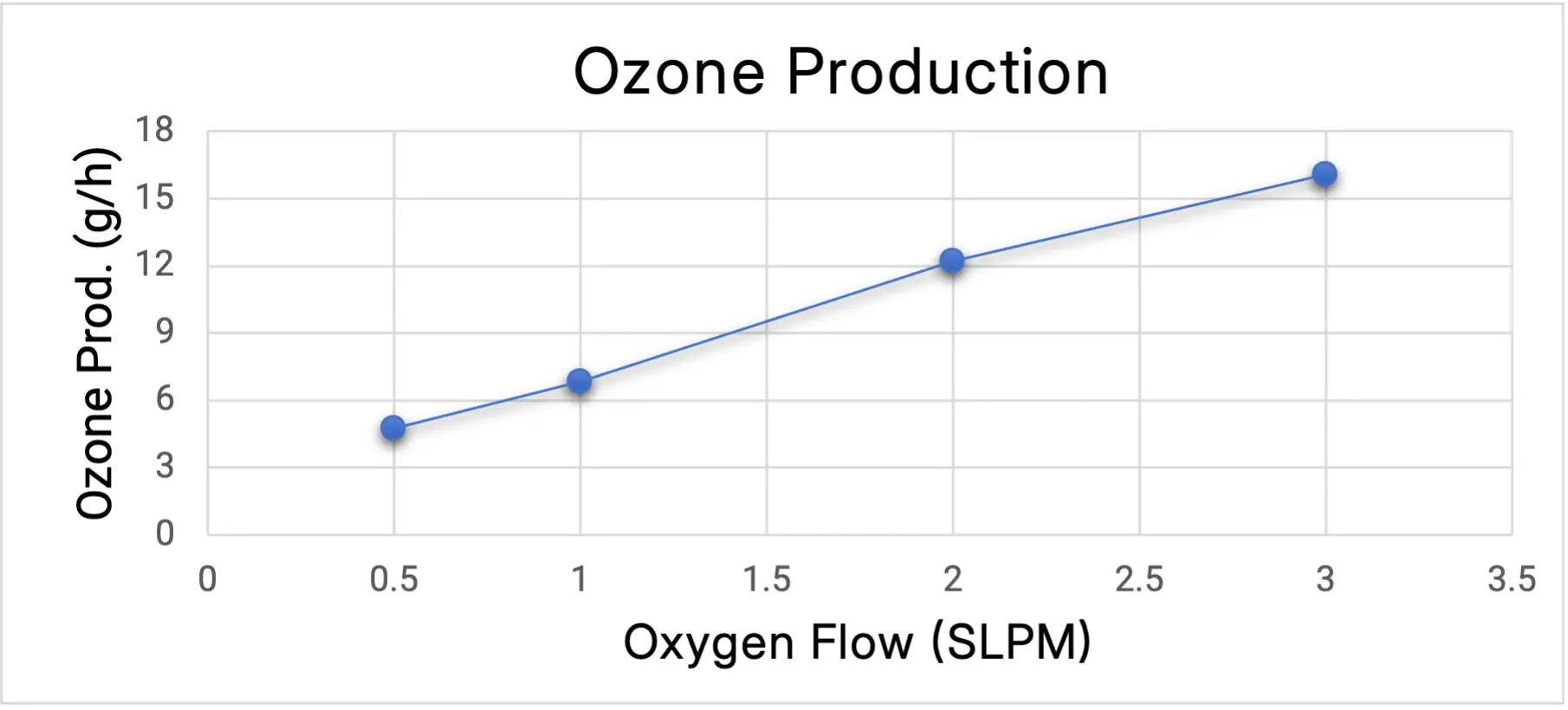

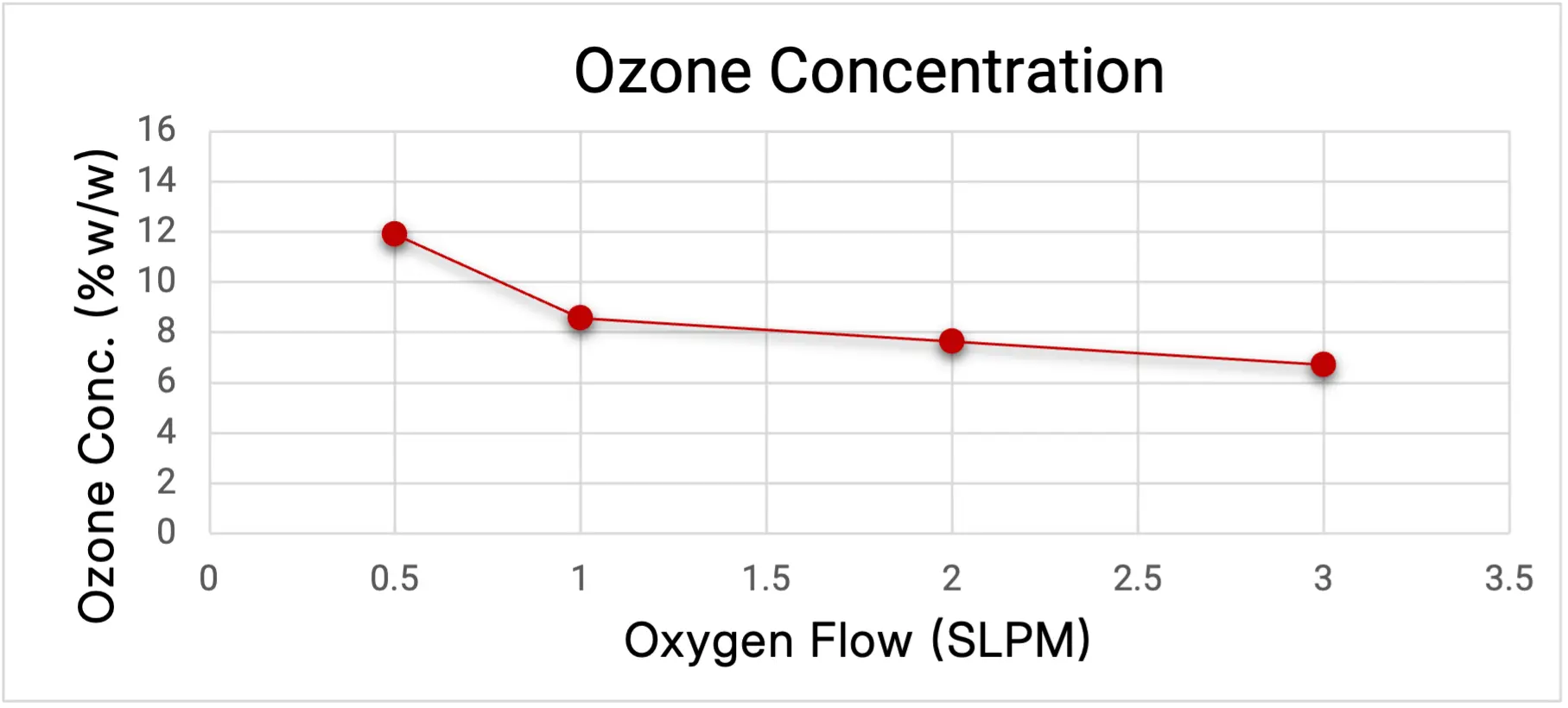

*Typical NANO 15 performance. The test was performed at 20˚C, and the Generator was ON for 30 minutes.
Key Features
iOzone™
The LCD screen will allow touch to switch the generator on and off and to adjust the desired power.

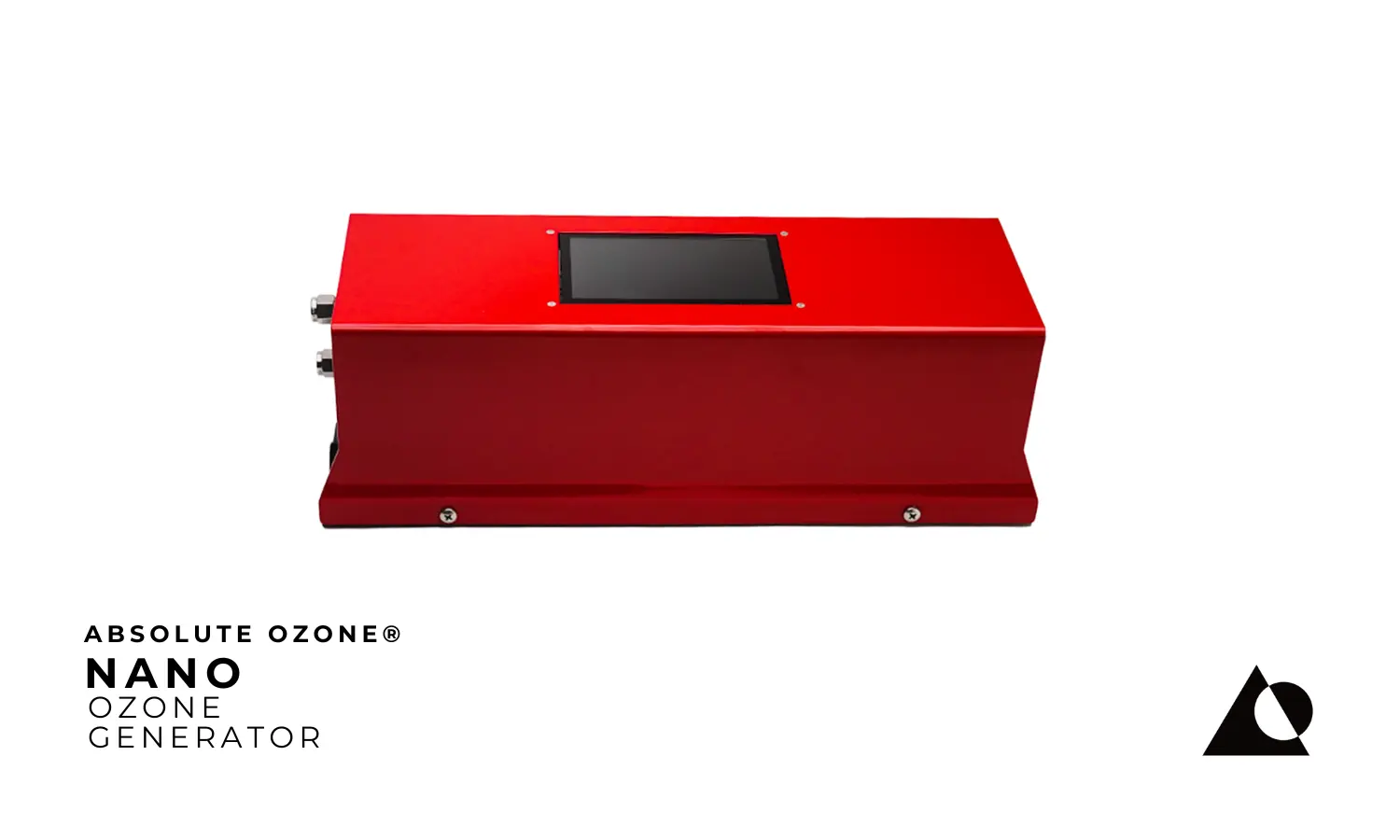

LCD Screen
The LCD screen will allow touch to switch the generator on and off and to adjust the desired power.
Remote Control
The generator comes with 4-20mA/0-10VDC Remote Control Inputs allow for precise device control via external signals.

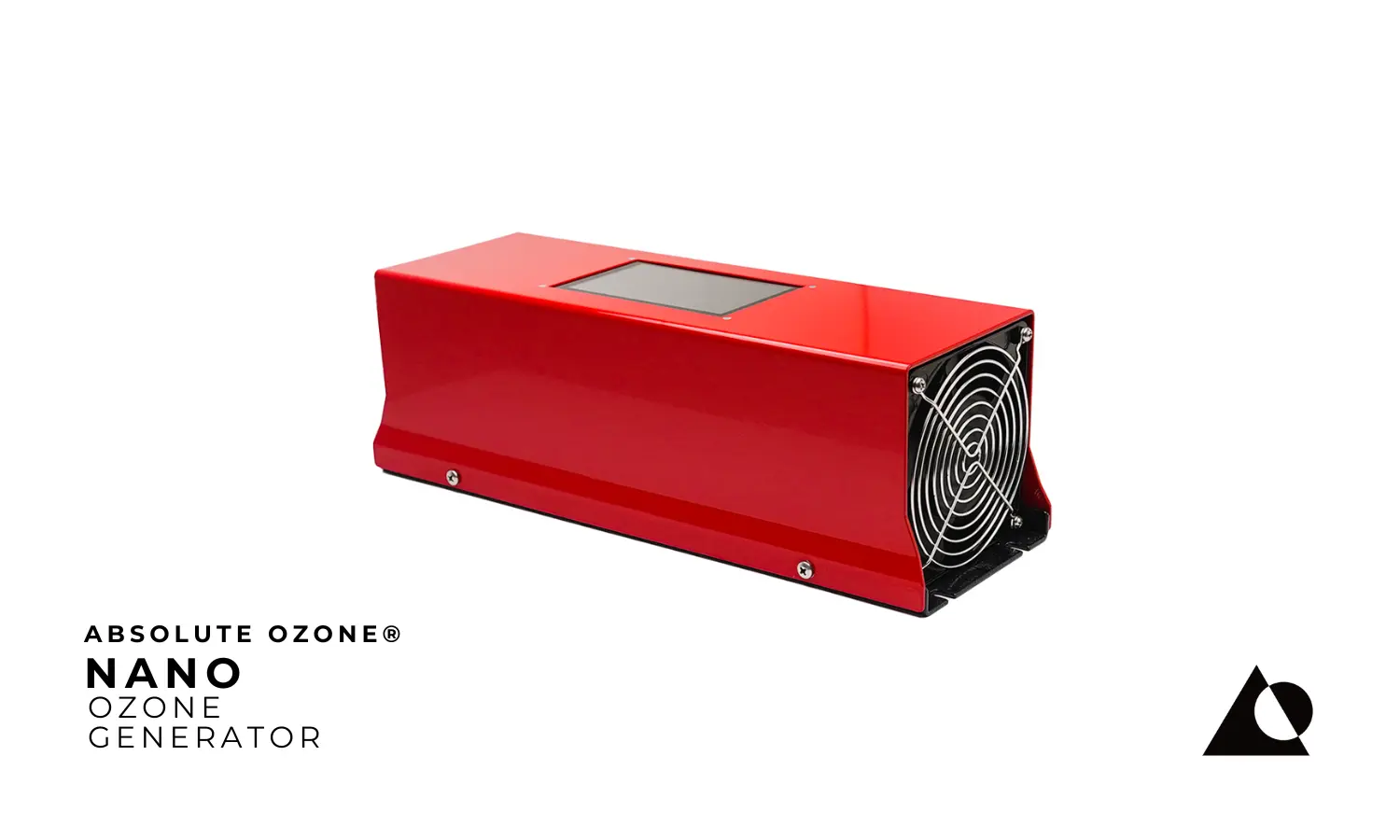

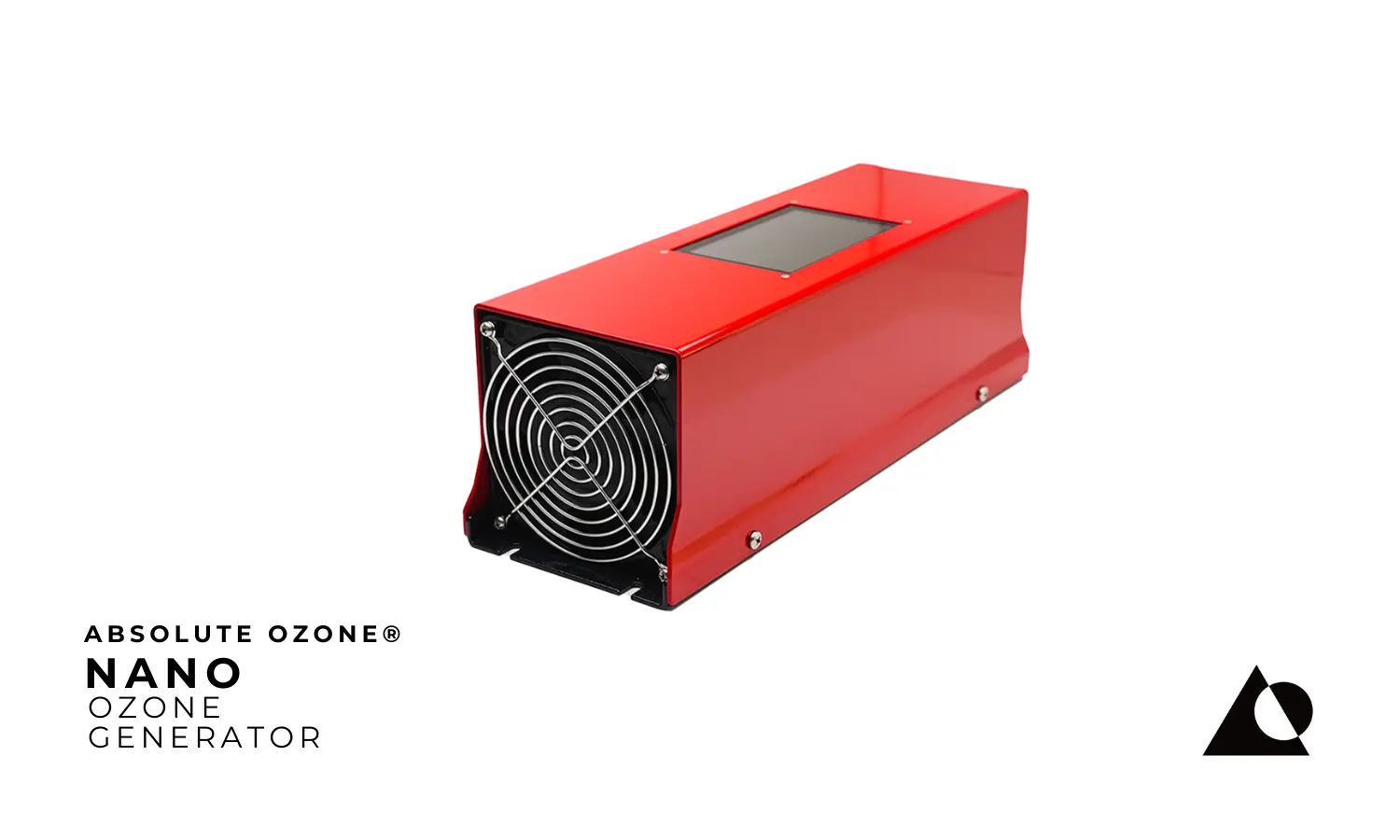

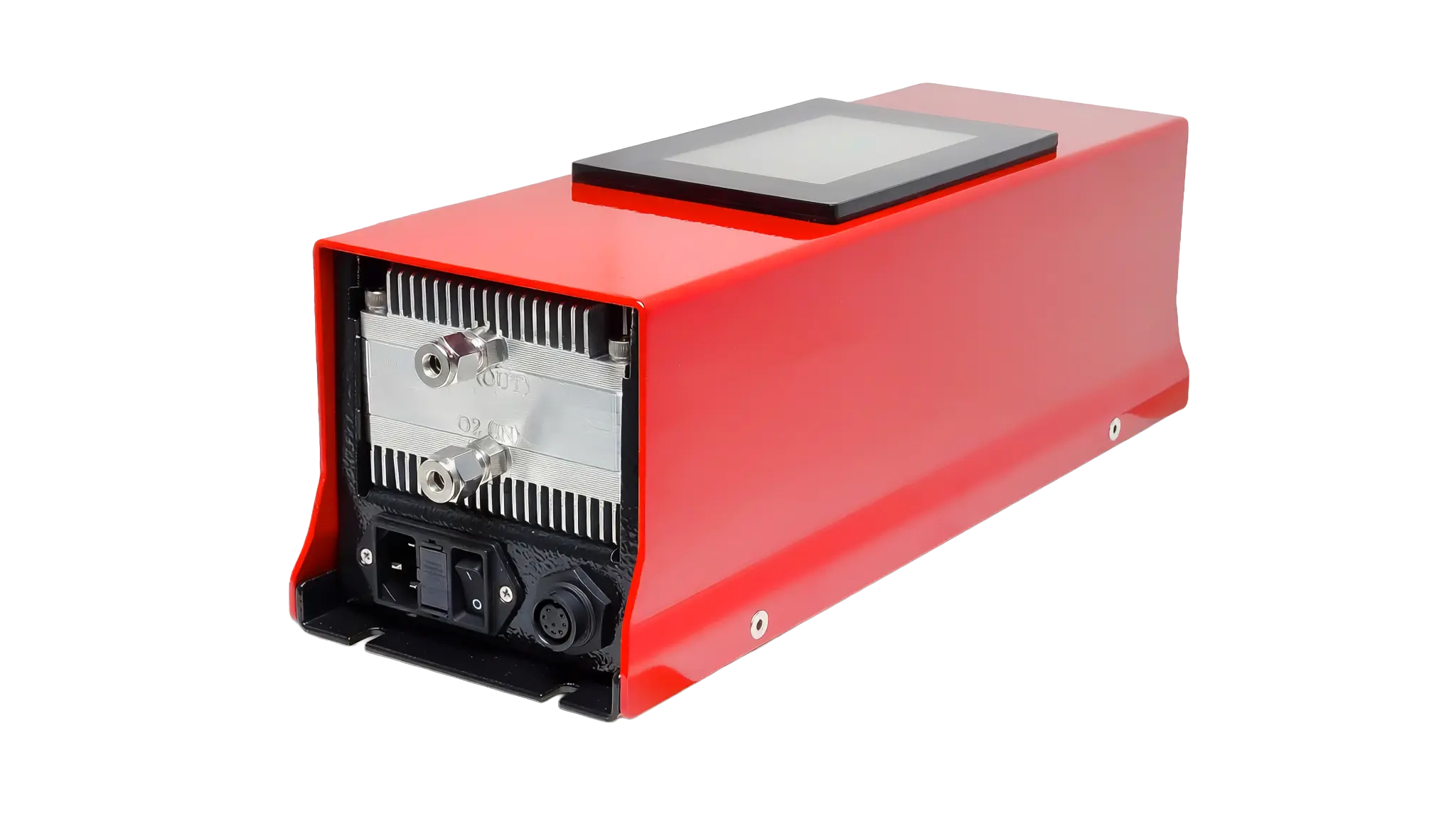

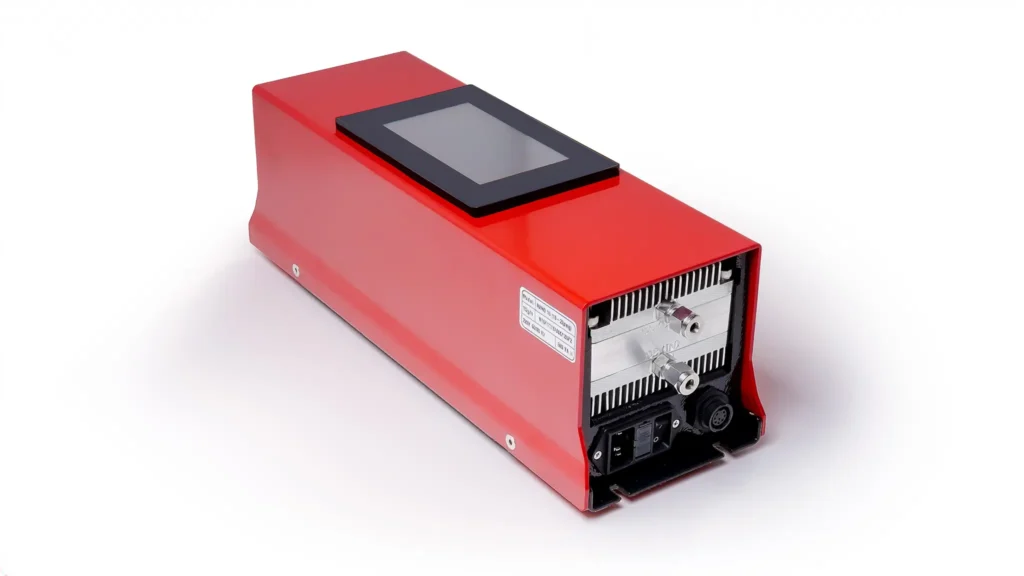

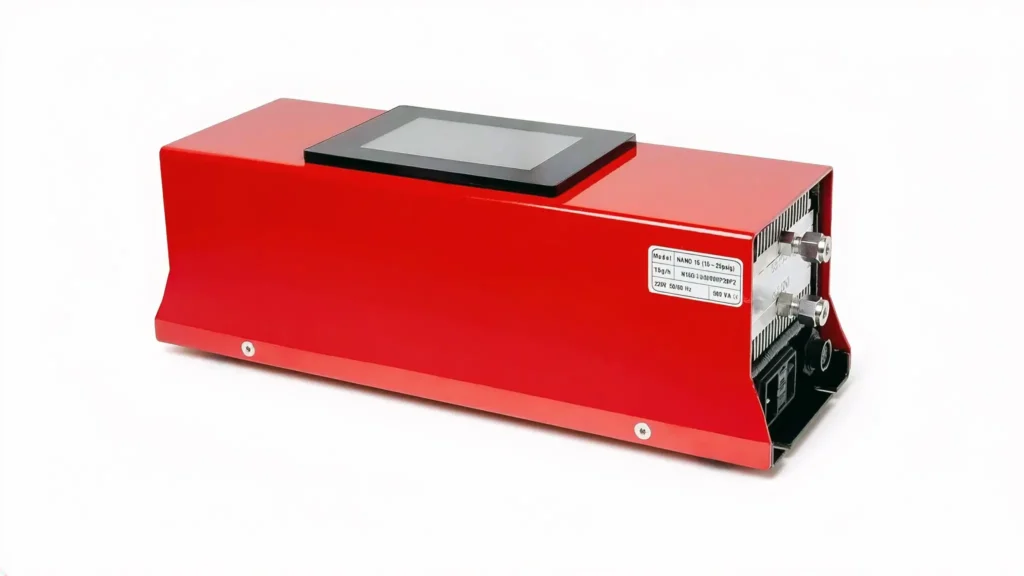

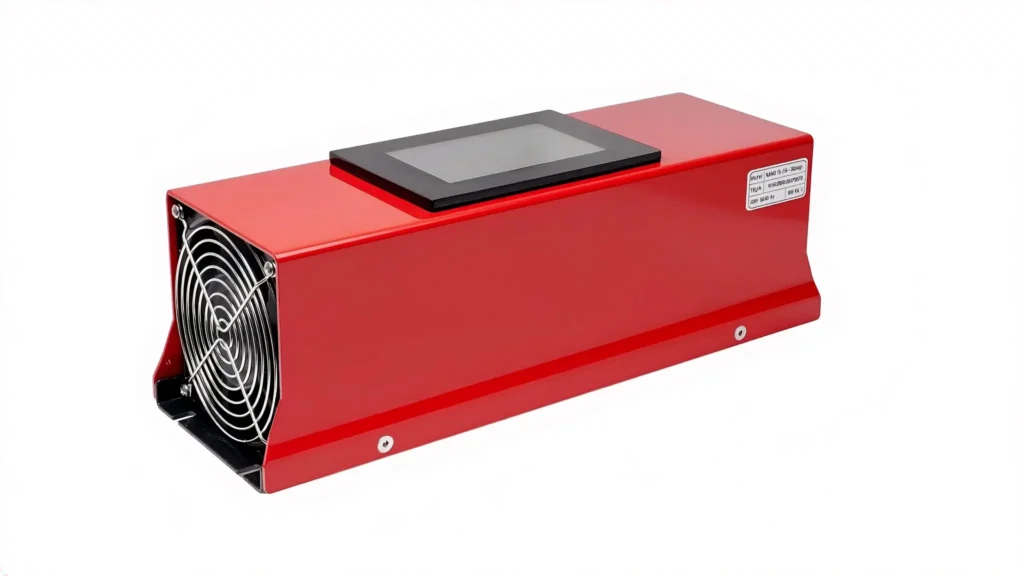

NANO—Absolute Ozone® Generators produce up to 15 g/h of ozone and have dimensions of 5.25” x 5” x 15.5” Only! – save valuable space and money on shipping.

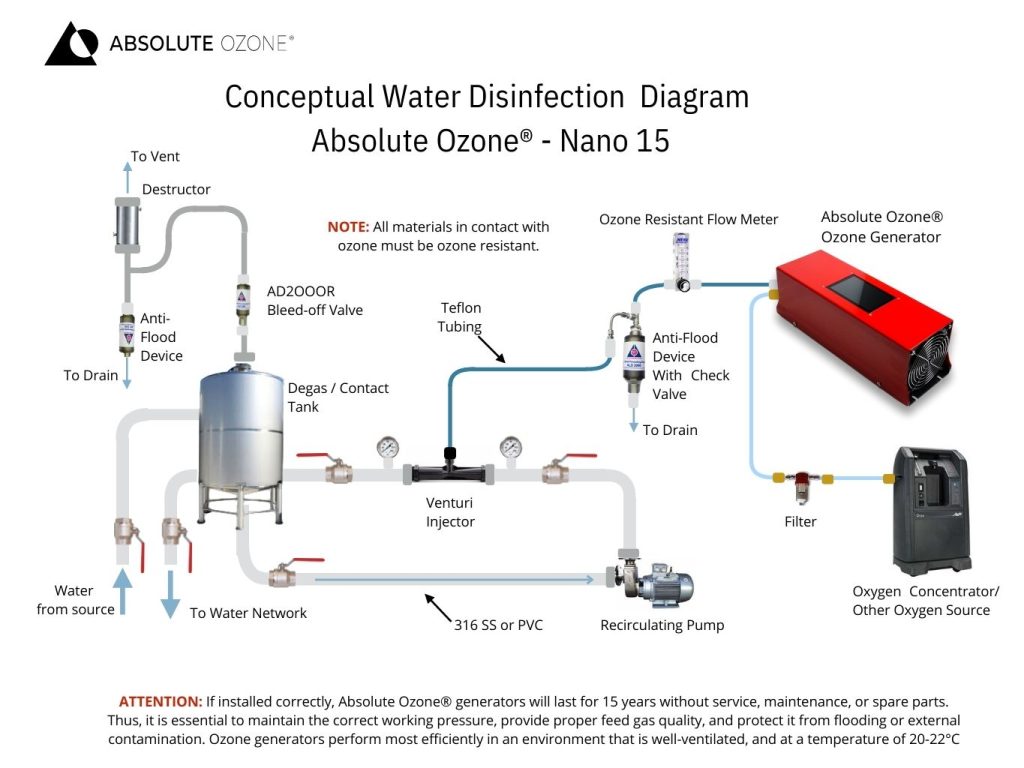

The Absolute Ozone | Ozone Generators Nano 15 model is a versatile and powerful
ozone generator that is perfect for small-scale projects such as laboratory or university
research, as well as water and air treatment applications.
Peace of mind with our 5-year warranty, plus a performance guarantee. Absolute Ozone® generators save you money on repairs and downtime.
Our technical assistance to our customers is complimentary, unlimited and absolutely free of charge.
