How Ozone Treatment Works

Ozone treatment is a powerful oxidation and disinfection process used in water treatment, sanitation, odor control, and industrial applications. By using ozone gas (O₃), ozone treatment systems can rapidly react with contaminants, microorganisms, organics, and other oxidizable substances.

Because ozone naturally decomposes back into oxygen after reacting, ozone treatment is widely used in applications seeking strong oxidation performance with minimal chemical residuals.

This guide explains how ozone treatment systems work, common ozone treatment methods, and the key factors that affect treatment performance.

Ozone treatment is a process that uses ozone gas to oxidize contaminants and support disinfection in water or air treatment systems.

Ozone reacts rapidly with:

• Bacteria
• Viruses
• Organic contaminants
• Odors
• Iron and manganese
• Biofilm

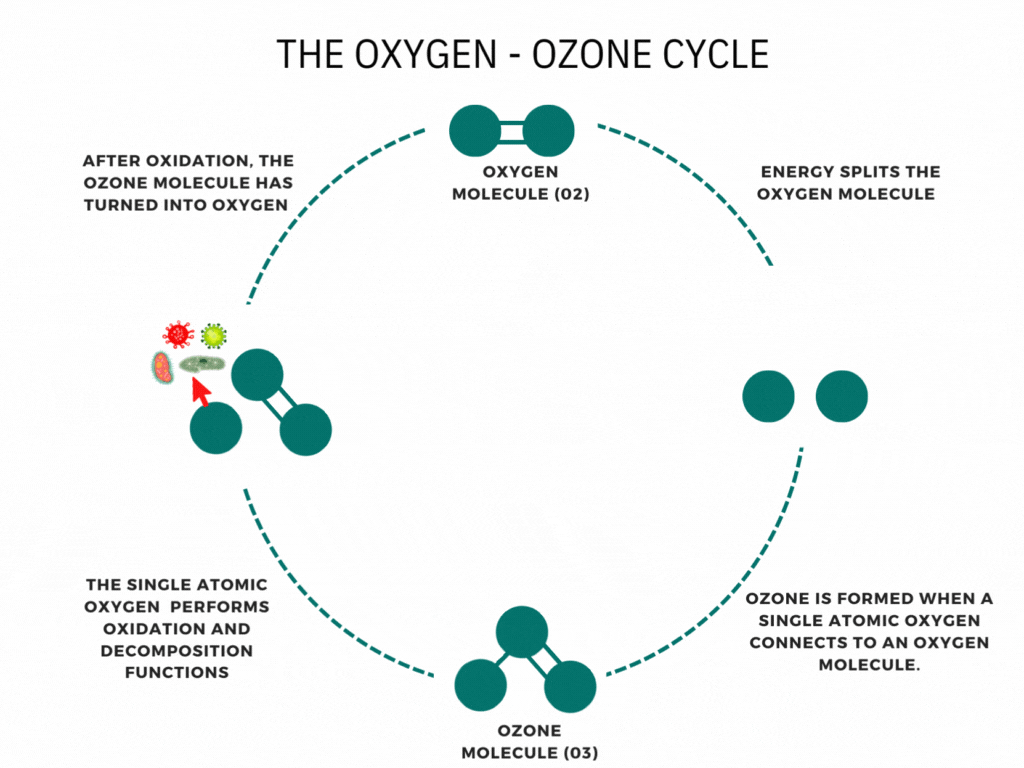

After oxidation occurs, ozone naturally decomposes back into oxygen.

Most ozone treatment systems follow the same general process:

1. Ozone is generated from oxygen or dry air.
2. The ozone gas is injected into water or air.
3. Ozone reacts with contaminants during contact time.
4. Excess ozone is safely removed or destroyed.

The effectiveness of ozone treatment depends on proper system design, ozone concentration, and transfer efficiency.

Ozone is typically produced using industrial ozone generators that convert oxygen into ozone using electrical discharge or ultraviolet light.

Common ozone generation methods include:

• Corona discharge ozone generation
• UV ozone generation

Industrial systems commonly use oxygen-fed ozone generators to achieve higher ozone concentrations and improved treatment efficiency.

Once ozone is generated, it must be transferred efficiently into the treatment process. Proper ozone injection plays a major role in ozone dissolution efficiency, oxidation performance, and overall system reliability.

Several ozone injection methods are used in industrial ozone systems, although their effectiveness can vary significantly depending on the application and operating conditions.

Venturi Injectors

Venturi injectors are one of the most commonly used ozone injection methods in water treatment systems.

A venturi injector uses pressure differential to draw ozone gas into flowing water, creating efficient mixing and ozone transfer.

Advantages of venturi injection systems include:

• High ozone dissolution efficiency
• No moving parts
• Low maintenance requirements
• Reliable long-term operation
• Relatively low installation cost
• Compact system design

Properly designed venturi systems can achieve very high ozone transfer efficiency in many industrial and commercial applications.

Because of their simplicity and effectiveness, venturi injectors are commonly preferred for most ozone water treatment systems.

Bubble Diffusers

Bubble diffusers introduce ozone into water through porous materials that create fine gas bubbles inside a contact tank.

Diffuser systems are typically used only in specific applications where venturi injection may not be practical.

Compared to properly optimized venturi systems, diffuser systems may:

• Produce lower ozone dissolution efficiency
• Require larger contact tanks
• Increase off-gas losses
• Require greater operating pressure

In many applications, diffuser systems provide lower ozone transfer efficiency than properly designed venturi injection systems.

Static Mixers

Static mixers are sometimes installed downstream of ozone injection systems to promote additional mixing within piping systems.

However, in many ozone treatment applications, properly optimized venturi injection alone already provides effective ozone mixing and dissolution performance.

Based on field experience, the additional performance improvement provided by static mixers may be limited in some systems while adding:

• Additional pressure loss
• Increased system complexity
• Additional installation cost

For many ozone applications, properly designed venturi injection systems can achieve effective ozone transfer without requiring additional inline mixing devices.

After ozone is injected, it requires sufficient contact time to react with contaminants.

During this stage, ozone oxidizes:

• Microorganisms
• Organics
• Metals
• Odors
• Dissolved contaminants

Proper contact time is important for achieving effective oxidation and treatment performance.

Water Treatment

Ozone is widely used for municipal, commercial, and industrial water treatment applications.

• Drinking water treatment
• Bottled water systems
• Wastewater treatment
• Cooling towers
• Industrial process water

Food & Beverage Processing

Ozone supports sanitation, oxidation, and product safety in food processing environments.

• Fruit & vegetable disinfection
• Meat & poultry sanitation
• Dairy processing
• Beverage production

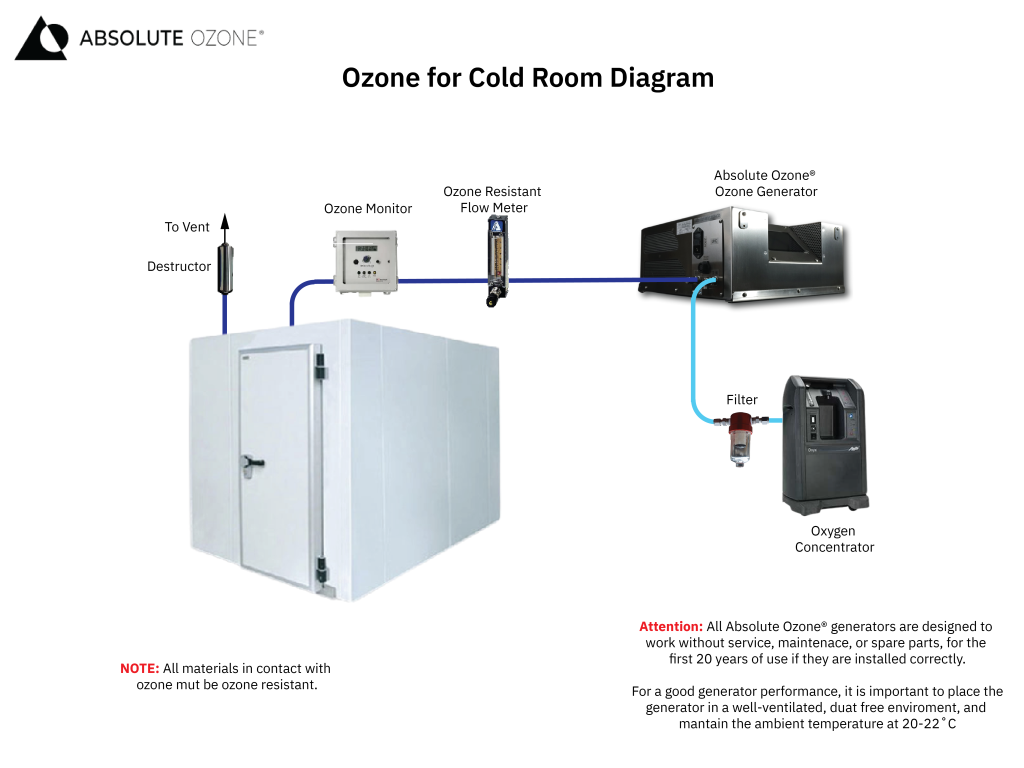

• Cold room treatment
• Food storage sanitation

Aquaculture & Agriculture

Ozone helps improve water quality, sanitation, and oxidation performance in agricultural environments.

• Fish farming & aquaculture
• Hydroponics
• Agricultural irrigation
• Grain & feed disinfection
• Livestock water treatment
• Cannabis cultivation

Air Treatment & Environmental Applications

Ozone is commonly used for odour control and environmental treatment applications.

• HVAC systems
• Odor control
• Air treatment
• Soil remediation
• Biofuel plants

Industrial & Manufacturing Applications

Industrial ozone systems are used for oxidation, cleaning, and process treatment.

• Textile industry
• Pulp & paper
• Commercial laundries
• Hydraulic fracturing
• Semiconductor processing
• Laboratory oxidation systems

Pools, Spas & Recreational Water

Ozone treatment helps improve recreational water quality and reduce chemical demand.

• Commercial swimming pools
• Residential pools
• Water parks
• Spas

Feature	Ozone Treatment	Traditional Chemical Treatment
Oxidation Strength	Very High	Moderate
On-Site Generation	Yes	Typically No
Residual Chemicals	Low	Often Higher
Reaction Speed	Fast	Slower
Chemical Storage	No	Often Required
