AS-K

AirSep Alpha Series Oxygen Generators produce from 20 to 5,500 cubic feet of oxygen per hour at up to 95% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for practically any application.

Product Characteristics*

• Product Flow: 750 – 900 SCFH (19.72 – 23.66 Nm3/hr or 353 – 424 SLPM)1
• Standard Product Pressure: 45 – 65 psig (310 – 448 kPa or 3.0 – 4.4 barg)
• Product Purity: Up to 95%
• Product Dew Point: -100°F (-73°C)

Ambient Operating Conditions

• Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)

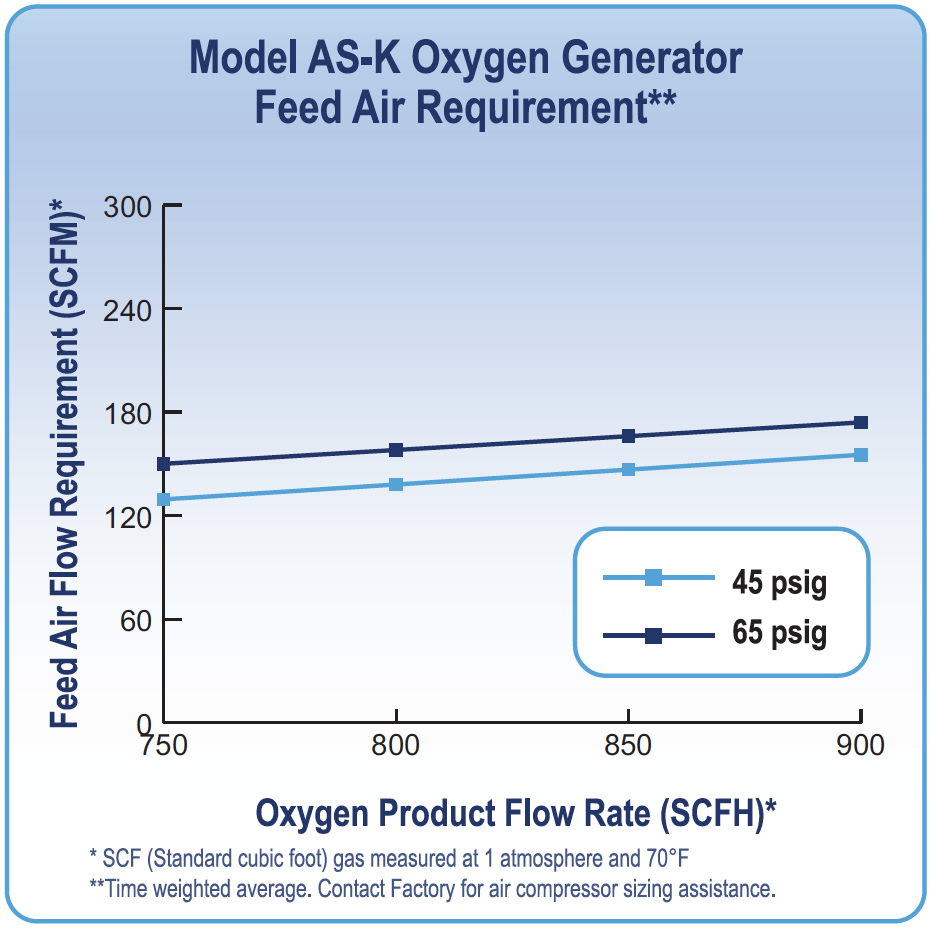

Feed Air Requirements

• Clean and Dry “Plant Air” (Class 5.6.4 per ISO 8573.1)
• Pressure: 90 psig (621 kPa or 6.2 barg) minimum
• Temperature: 122°F (50°C) maximum

Control Power Requirements

• 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60Hz, 1.0A

Physical Connections

• Compressed Air Inlet: 1” FNPT
• Product Gas Outlet: 3/4” FNPT

Certifications and Approvals

• China Pressure Vessel, ASME Section VIII Division 1, CAN/CSA-C22.2 No. 61010-1-12, ANSI/UL Std. No. 61010-1:2012 (for 120 V configurations only)

Warranty: 1 Year Parts and Factory Labor*
