ATLAS 30
The ATLAS 30 delivers 30 g/h of ozone with concentrations up to 12% by weight, making it an excellent choice for commercial water treatment, aquaculture, food processing, and industrial applications. Designed for continuous operation, these generators provide outstanding ozone transfer efficiency while maintaining low oxygen consumption and exceptional reliability.
Technical Specifications
Product Characteristics
- Ozone Production: 30 g/h
- Standard Working Pressure: 20 PSIG
- Concentration (% by weight O3): 5 – 12%
- Gas flow rate: 0.1 – 4 SLPM
Control Power Requirements
- 120 V ~ ±10%, 50/60 Hz, Single Phase
- 230 V ~ ±10%, 50/60 Hz, Single Phase
- Maximum Power Consumption: 500 W

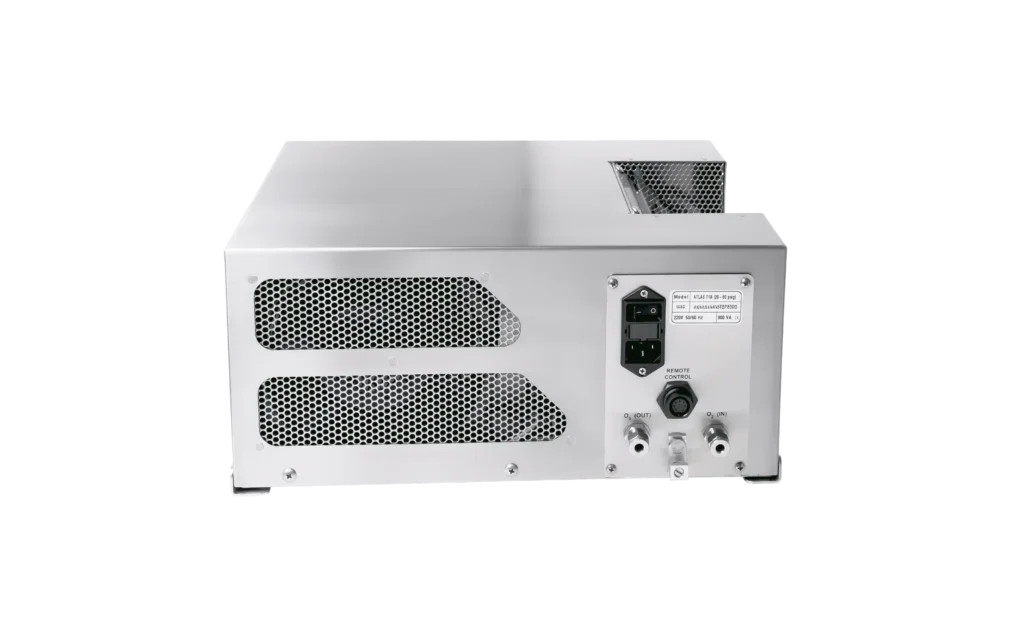

Physical Connections
- Oxygen Inlet: 1/4″ SS pressure fitting
- Ozone Outlet: 1/4″ SS pressure fitting
Materials and Construction
- Enclosure: Stainless Steel
- The high-precision machined ozone generator cell is tested at up to 120 PSIG for leaks.
- O3/O2 Gas Tubing: PTFE/304 Stainless Steel

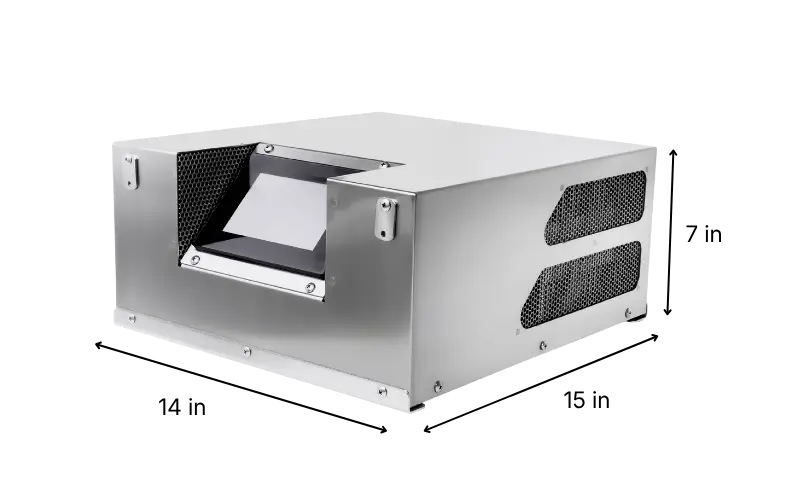

Dimensions and Weight
- Enclosure Dimensions: 7 inch height x 14 inch width x 15 inch depth
- Generator Weight: 35 lbs
CSA – available as an option
Reliability, Performance, and Quality Backed By 5-year Warranty!
BEST PERFORMANCE
Unparalleled for Air-cooler
HIGH-QUALITY COMPONENTS
5-years Warranty
COMPACT DESIGN
Easy to integrate
SMARTH
Diagnostic & Control System
Unparalleled Performance
Designed for maximum efficiency, Absolute Ozone® generators produce high-concentration ozone and achieve industry-leading ozone dissolution rates. Our proprietary microfluidic technology ensures exceptional mass transfer, allowing more ozone to be dissolved into water while minimizing wasted oxygen.
The result is faster treatment, lower operating costs, and reliable performance you can depend on in the most demanding applications.
| Oxygen Flow (SLPM) | Ozone Concentration (% w/w) | Ozone Production (g/h) |
|---|---|---|
| 0.5 | 14.3 | 5.7 |
| 1 | 14.0 | 11.2 |
| 2 | 12.4 | 19.8 |
| 3 | 10.7 | 25.6 |
| 4 | 9.6 | 30.6 |
*Typical performance. Testing was performed at 20 °C with the generator operating continuously for 30 minutes.
Key Features
iOzone™
Designed to protect against installation or usage issues like incorrect gas pressure, high ambient temperatures, flooded ozone cells, wiring/voltage problems and more.
Remote Control
The generator comes with 4-20mA/0-10VDC Remote Control Inputs allow for precise device control via external signals.

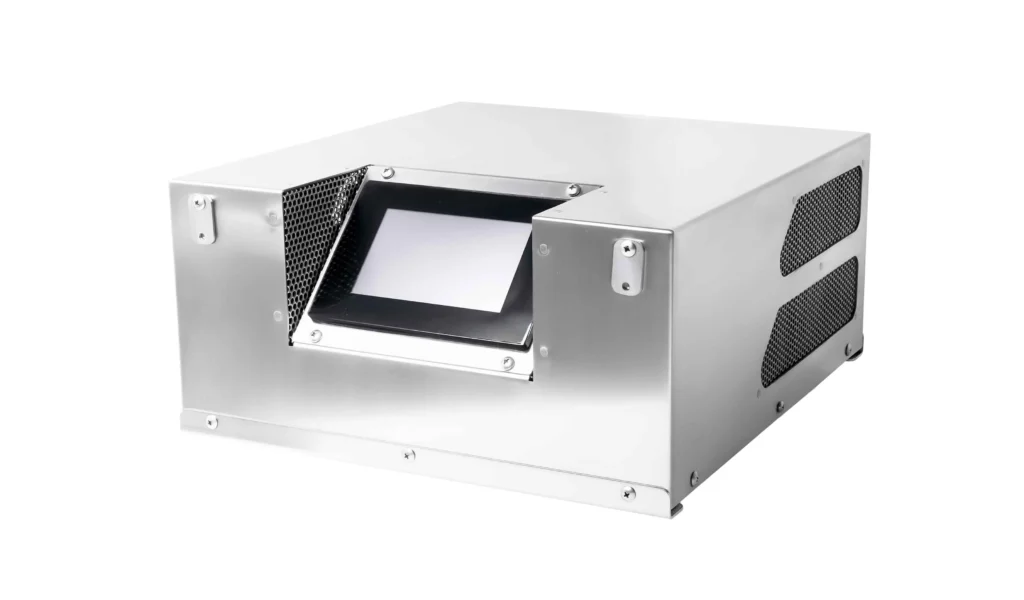

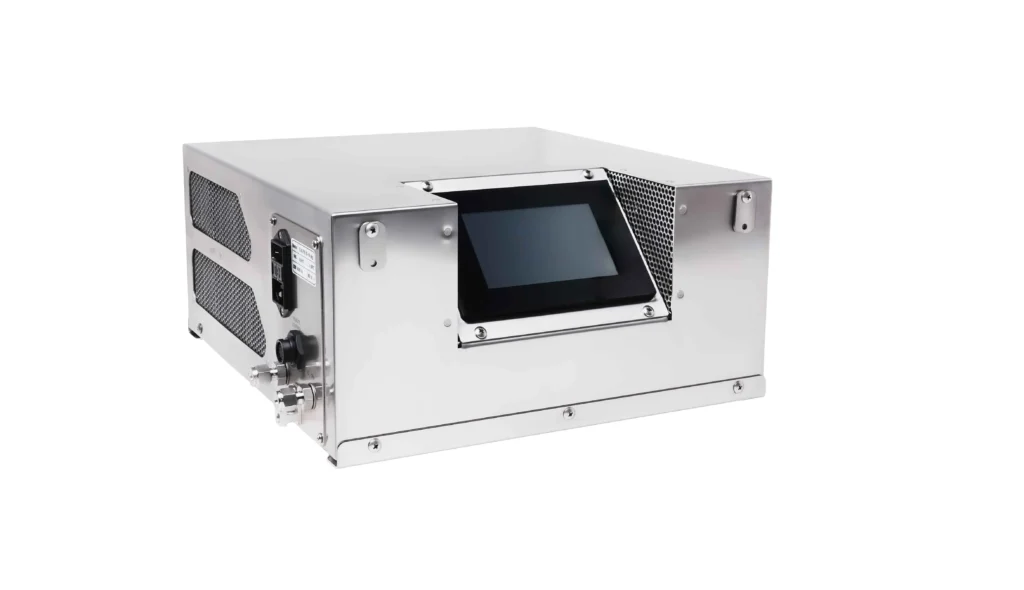

LCD Screen
The LCD screen will allow touch to switch the generator on and off and to adjust the desired power.
5-years Warranty
Peace of mind with our 5-year warranty, plus a performance guarantee. Absolute Ozone® generators save you money on repairs and downtime.
Technical Support
Our technical assistance to our customers is complimentary, unlimited and absolutely free of charge.
Crafted for reliability and performance
Exceptional reliability. Leak-proof design tested up to 150 PSIG, corrosion-resistant stainless steel enclosure, highest quality components
Where this fits withing the configuration range
Understanding the hieratchy of modular and industrial ozone generators
| MODEL | OZONE PRODUCTION | OPERATING PRESSURE |
|---|---|---|
| NANO 15 | 15 g/h | 20 PSIG |
| ATLAS 30 | 30 g/h | 20 PSIG |
| ATLAS 30C | 30 g/h | 20 PSIG |
| ATLAS UHC | 20 g/h | 20 PSIG |
| ATLAS 60 | 60 g/h | 30-45 PSIG |
| ATLAS 60LP | 60 g/h | 20 PSIG |
| ATLAS 80 | 80 g/h | 30-45 PSIG |
| ATLAS 100 | 100 g/h | 30-50 PSIG |
| MAGNUM 120 | 120 g/h | 20 PSIG |
| MAGNUM 160 | 160 g/h | 30-45 PSIG |
| MAGNUM 200 | 200 g/h | 30-50 PSIG |
Not Sure What Your System Requires?
We can help you determine the right ozone generator and supporting components based on your application, system setup, and operating conditions.
